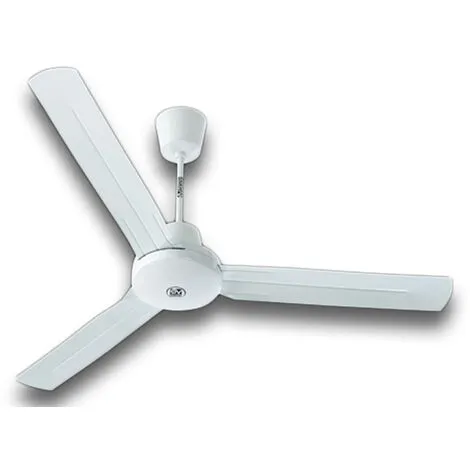

Vortice Ventilateur Plafond Nordik International Plus 140/56″ 61742

Caractéristiques

• Caractéristiques: Reversible
• Couleur: Blanc

VORTICE – VENTILATEUR DE PLAFOND RÉVERSIBLE, SÉRIE NORDIK INTERNATIONAL PLUS 140/56″ BLANCPROTEGÉ PAR LES JETS D’EAU, IDÉAL POUR APPLICATIONS EN EXTÉRIEUR• NOMINAL DIAMETER OF BLADES 1400 MM• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR WHITE• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT PP, COLOUR WHITE.• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS. DIRECTION OF ROTATION REVERSIBLE.• MAXIMUM AIR FLOW: 13,500 M3/H.• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR WHITE.• STEEL CEILING ROD WITH POLYESTER POWDER COATED FINISH, COLOUR WHITE, LENGTH 375 MM.• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.• SPEED SELECTABLE BY WAY OF CONTROL UNITS (OPTIONAL)• ENCLOSURE RATING IPX5 ENSURING COMPLETE PROTECTION FROM WATER SPRAY.NORDIK INTERNATIONAL PLUS​ 140/56″ IPX5         61742ABSORBED CURRENT MAX (A): 0,33ABSORBED POWER MAX (W): 70BLADES DIAMETER: 1422FREQUENCY (HZ): 50INSULATION CLASS: I°IP: X5MOTOR POWER (W): 70VOLTAGE (V): 220-240WEIGHT (KG): 6,70AIRFLOW SPEED AT MAX SPEED (M/S): 1,69DELIVERY MAX (M³/H): 13500DELIVERY MAX (M³/MIN): 225,00RPM: 231SERVICE VALUE (M³/MIN)/W: 3,214SOUND POWER LEVEL LW [DB(A)]: 52,1SIZE A (MM): Ø 1422SIZE B (MM): Ø 230SIZE C (MM): 495
