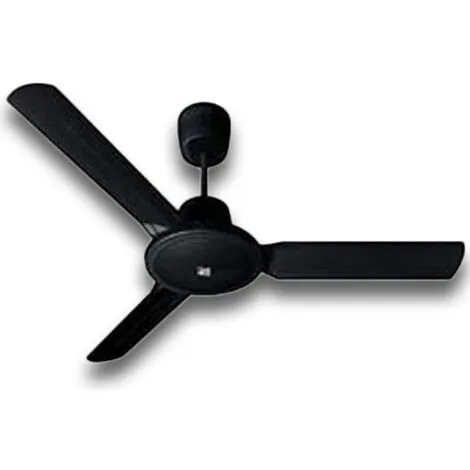

Vortice Ventilateur Plafond Nordik Evolution Réversible 140/56″ Noir 61759

Caractéristiques

• Caractéristiques: Reversible
• Culot: E27

VORTICE – VENTILATEUR DE PLAFOND SÉRIE NORDIK EVOLUTION RÉVERSIBLE, DIAMÈTRE 140/56″ NOIR• NOMINAL DIAMETER OF BLADES 1400 MM• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR BLACK.• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT THERMOPLASTIC RESIN (PP).• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS. DIRECTION OF ROTATION REVERSIBLE.• MAXIMUM AIR FLOW 16,586 M3/H• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR BLACK.• STEEL CEILING ROD WITH SCRATCH-RESISTANT POLYESTER POWDER COATED FINISH, COLOUR BLACK, LENGTH 375 MM.• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.• FACTORY-PREPARED TO ACCEPT 2 SPECIFIC OPTIONAL LIGHT KITS:- WITH LAMP RATED 105 W MAX, E27 SCREW FITTING- WITH 2X15 W MAX ENERGY SAVING LAMP, E27 SCREW FITTING (MANDATORY IN EU).• SPEED SELECTABLE BY WAY OF CONTROL UNITS OR TELENORDIK 5TR REMOTE CONTROL (OPTIONAL)NORDIK EVOLUTION RÉVERSIBLE 140/56″ NOIR        61759FREQUENCY (HZ): 50INSULATION CLASS: I°VOLTAGE (V): 220-240AIRFLOW SPEED AT MAX SPEED (M/S): 2,08DELIVERY MAX (M³/H): 16586DELIVERY MAX (M³/MIN): 276,43RPM: 197SERVICE VALUE (M³/MIN)/W: 3,949SOUND POWER LEVEL LW [DB(A)]: 52,6SIZE A (MM): 980SIZE B (MM): 298SIZE C (MM): 495SIZE D (MM): 229SIZE E (MM): 724SIZE F (MM): 291SIZE G (MM): 145SIZE H (MM): 640SIZE L (MM): 291
