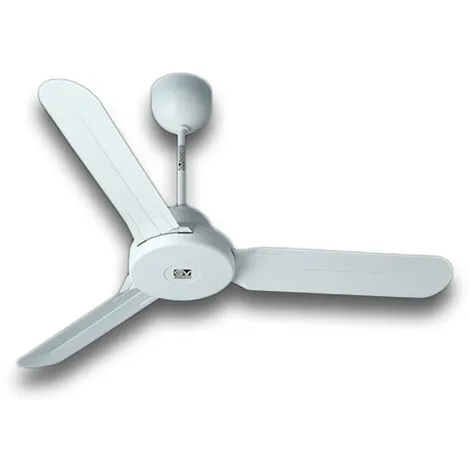

Vortice Ventilateur Plafond Nordik Design Is 140/56 Blanc 61360

Caractéristiques

• Caractéristiques: Avec éclairage
• Diamètre: 90
• Type de commande: Controle à distance
• Nombre de pales: 3

VORTICE – VENTILATEUR DE PLAFOND SÉRIE NORDIK, BLANC SANS LUMIÈRE ET SANS GROUP DE COMMANDE, DIAMÈTRE 140• TOP AND BOTTOM MOTOR COVERS MOULDED FROM HEAT-RESISTANT AND UV-RESISTANT THERMOPLASTIC RESIN (ABS), COLOUR WHITE• WIRING CONNECTIONS AT END OF CEILING ROD CONCEALED BY DOMES MOULDED FROM IMPACT- AND UV-RESISTANT PP, COLOUR WHITE.• NOMINAL DIAMETER OF BLADES 1400 MM.• SINGLE PHASE START CAPACITOR MOTOR WITH EXTERNAL ROTOR, AND SHAFT TURNING IN BALL BEARINGS.• MAXIMUM AIR FLOW: 13,680 M3/H.• 3 GALVANIZED SHEET STEEL BLADES POWDER COATED WITH SCRATCH-RESISTANT POLYESTER, COLOUR WHITE• STEEL CEILING ROD WITH POLYESTER POWDER COATED FINISH, COLOUR WHITE, LENGTH 375 MM• BAG OF ACCESSORIES CONTAINING NUTS AND BOLTS REQUIRED FOR ASSEMBLY OF BLADES, CEILING HOOK AND RUBBER ANTI-VIBRATION WASHER.• SPEED SELECTABLE BY WAY OF CONTROL UNITS OR TELENORDIK 5T REMOTE CONTROL (OPTIONAL)L’IMAGE SE RÉFÈRE AU MODÈLE DE DIAMÈTRE DE 90 cmIS 140/56″ BLANC SANS LUMIÈRE  61360ABSORBED CURRENT MAX (A): 0,33ABSORBED POWER MAX (W): 70BLADES DIAMETER: 140FREQUENCY (HZ): 50INSULATION CLASS: I°VOLTAGE (V): 220-240WEIGHT (KG): 5,6AIRFLOW SPEED AT MAX SPEED (M/S): 1,72DELIVERY MAX (M³/H): 13680DELIVERY MAX (M³/MIN): 228,00GIRI MINUTO: 215RPM: 215SERVICE VALUE (M³/MIN)/W: 3,257SOUND POWER LEVEL LW [DB(A)]: 52,1SIZE A (MM): Ø 1422SIZE B (MM): Ø 230SIZE C (MM): 495
