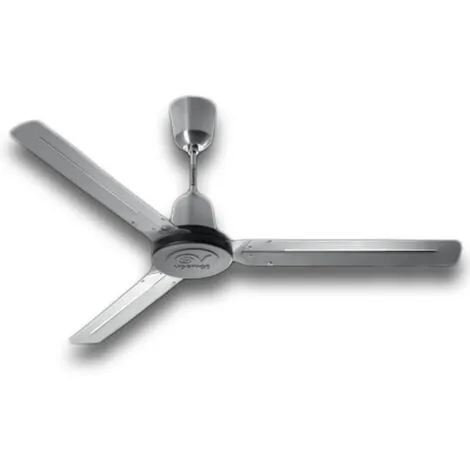

Vortice Ventilateur De Plafond Nordik Heavy Duty 120 Inox 61024

VORTICE – VENTILATEUR DE PLAFOND À USAGE INDUSTRIEL NORDIK HEAVY DUTY, AVEC DIAMÈTRE 120, INOX• DIE-CASTED EPOXY PAINTED MOTOR COVERS, COLOUR BLACK, SEALED WITH EPDM GASKETS TO PREVENT DUST OR WATER ENTRY.• CUPS MADE OF AISI 304 STAINLESS STEEL .• NOMINAL DIAMETER OF BLADES 1200 MM.• SINGLE-PHASE EXTERNAL ROTOR MOTOR, SHAFT MOUNTED ON BALL BEARINGS.• 3 BLADES MADE OF AISI 304 STAINLESS STEEL.• 4 HOLE SUPPORT PLATE COMPATIBLE WITH DIFFERENT TYPES OF CEILINGS, EVEN HIGHLY SLANTED.• LIFELINE TO PREVENT ANY RISK OF FALLING IN CASE OF UNCORRECT INSTALLATION OF THE PRODUCT.• POSSIBILITY OF AUTOMATIC ADJUSTMENT OF UP TO 16 FANS SIMULTANEOUSLY, IN RELATION TO THE DIFFERENTIAL MEASURED BY TWO TEMPERATURE SENSORS (VORT DELTA T OPTIONAL).• NUTS AND BOLTS, CEILING HOOK AND RUBBER MADE DAMPER SUPPLIED WITH THE PRODUCT.• ADJUSTABLE SPEED CONTROL THROUGH AUTO-TRANSFORMER OR MULTIPLE ELECTRONIC DEVICES ALLOWED (OPTIONALS) NORDIK HEAVY DUTY 120 EDELSTAHL       61024ABSORBED CURRENT MAX (A): 0,35BLADES DIAMETER:1218FREQUENCY (HZ): 50 INSULATION CLASS: I°IP: 55MOTOR POWER (W): 80VOLTAGE (V): 230WEIGHT (KG): 7,3AIRFLOW SPEED AT MAX SPEED (M/S): 2,40DELIVERY MAX (M³/H): 14050DELIVERY MAX (M³/MIN): 234RPM: 233SERVICE VALUE (M³/MIN)/W: 2,925SOUND POWER LEVEL LW [DB(A)]: 51,8SOUND PRESSURE LEVEL LP [DB (A)] 3M: 34,32SIZE A (MM): Ø 1218SIZE B (MM): Ø 230SIZE C (MM): 495
