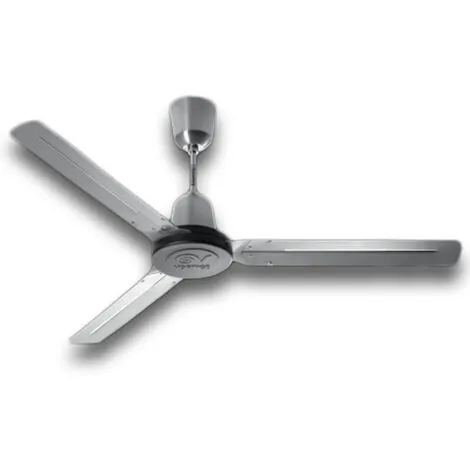

Vortice Ventilateur De Plafond Nordik Heavy Duty 120 Gris/noir 61020

VORTICE – VENTILATEUR DE PLAFOND NORDIK HEAVY DUTY AVEC DIAMÈTRE 120, GRIS/NOIR• DIE-CASTED EPOXY PAINTED MOTOR COVERS, COLOUR BLACK, SEALED WITH EPDM GASKETS TO PREVENT DUST OR WATER ENTRY.• CUPS MADE OF ELECTROGALVANIZED STEEL PLATE PROTECTED BY A DOUBLE LAYER OF EPOXY PAINT.• NOMINAL DIAMETER OF BLADES 1200 MM.• SINGLE-PHASE EXTERNAL ROTOR MOTOR, SHAFT MOUNTED ON BALL BEARINGS.• 3 BLADES MADE OF ELECTROGALVANIZED STEEL PLATE PROTECTED BY A DOUBLE LAYER OF EPOXY PAINT.• 4 HOLE SUPPORT PLATE COMPATIBLE WITH DIFFERENT TYPES OF CEILINGS, EVEN HIGHLY SLANTED.• LIFELINE TO PREVENT ANY RISK OF FALLING IN CASE OF UNCORRECT INSTALLATION OF THE PRODUCT.• POSSIBILITY OF AUTOMATIC ADJUSTMENT OF UP TO 16 FANS SIMULTANEOUSLY, IN RELATION TO THE DIFFERENTIAL MEASURED BY TWO TEMPERATURE SENSORS (VORT DELTA T OPTIONAL).• NUTS AND BOLTS, CEILING HOOK AND RUBBER MADE DAMPER SUPPLIED WITH THE PRODUCT.• ADJUSTABLE SPEED CONTROL THROUGH AUTO-TRANSFORMER OR MULTIPLE ELECTRONIC DEVICES ALLOWED (OPTIONALS) NORDIK HEAVY DUTY 120 GRAU/SCHWARZ       61020ABSORBED CURRENT MAX (A): 0,35ABSORBED POWER MAX (W): 80BLADES DIAMETER: 1218FREQUENCY (HZ): 50INSULATION CLASS: I°IP: 55MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50MOTOR POWER (W): 80VOLTAGE (V): 230WEIGHT (KG): 7,7AIRFLOW SPEED AT MAX SPEED (M/S): 2,40DELIVERY MAX (M³/H): 14050DELIVERY MAX (M³/MIN): 234RPM: 233SERVICE VALUE (M³/MIN)/W: 2,925SOUND POWER LEVEL LW [DB(A)]: 51,8SOUND PRESSURE LEVEL LP [DB (A)] 3M: 34,32SIZE A (MM): Ø 1218SIZE B (MM): Ø 230SIZE C (MM): 495
