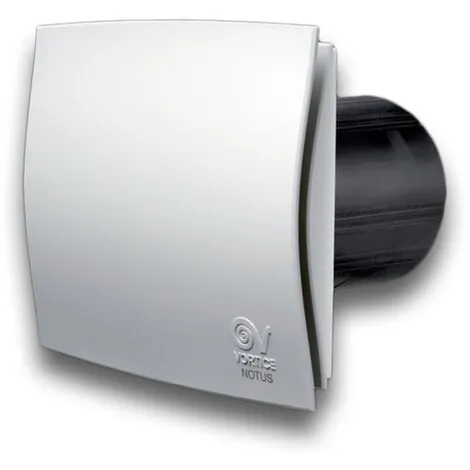

Vortice Aspirateur Axial Ventilation Continue Vort Notus 11903

Caractéristiques

• Type de produit: Ventilateur

VORTICE – ASPIRATEUR AXIAL POUR L’INSTALLATION AU MUR, AU PLAFOND OU PAR CONDUITS, IDÉAL POUR LA VENTILATION CONTINUE (GRÂCE À LA TRÈS BASSE CONSOMMATION DU MOTEUR À COMMUTATION ÉLECTRONIQUE – EC BRUSHLESS, ADOPTÉ), DE LOCAUX RÉSIDENTIELS ET COMMERCIAUX DE PETITES ET MOYENNES DIMENSIONS, DONT LE PLAN PERMET UNE ÉVACUATION DIRECTE OU PAR TUYAUX DE LONGUEUR RÉDUITE.• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).• NOMINAL DIAMETER 100 MM• THREE-PHASE EC BRUSHLESS MOTOR OF EXTERNAL ROTOR TYPE WITH SHAFT TURNING IN BALL BEARINGS, DESIGNED TO GUARANTEE NOTABLY LOW ENERGY CONSUMPTION AND TO PROVIDE 3 DIFFERENT AIR FLOW RATES (THE FIRST TWO OF WHICH CAN BE SELECTED AT THE MOMENT OF INSTALLATION)• AIR FLOW BETWEEN 11.7 M3/H AND 42 M3/HVORT NOTUS 11903ABSORBED POWER 1ST SPEED (W): 1,5FREQUENCY (HZ): 50INSULATION CLASS: II°IP: X4MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,025MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,018MAX. ABSORBED POWER AT MAX SPEED (W): 2,8NOMINAL DIAMETER (MM): 100VOLTAGE (V): 220-230WEIGHT (KG): 0,8DELIVERY 1ST SPEED (L/S): 3,3DELIVERY 1ST SPEED (M³/H): 11,7MAX DELIVERY AT MAX SPEED (L/S): 11,7MAX DELIVERY AT MAX SPEED (M³/H): 42PRESSURE – 1ST SPEED (MMH20): 2,4PRESSURE – 1ST SPEED (PA): 23,5PRESSURE MAX – MAX SPEED (MMH20): 8,8PRESSURE MAX – MAX SPEED (PA): 86,3SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX SPEED: 17.3SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MIN SPEED: 10.1SIZE A (MM): 194,6SIZE B (MM): 182SIZE C (MM): 171SIZE D (MM): 164SIZE E (MM): 97,8SIZE F (MM): 129SIZE G (MM): 40,5SIZE H (MM): 22,2SIZE I (MM): 8
