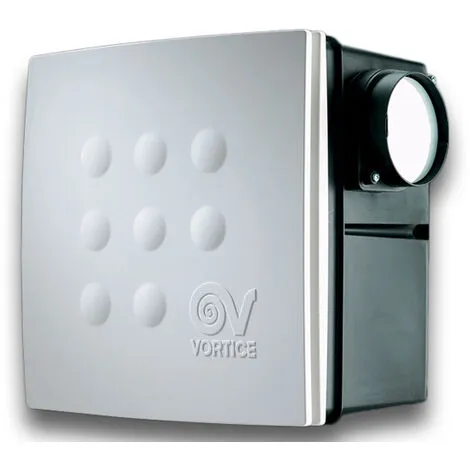

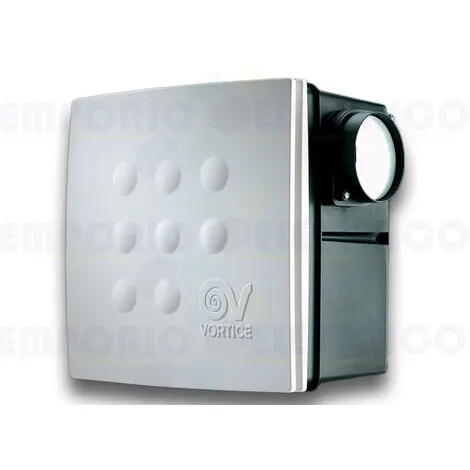

Vortice Aérateur Vort Quadro à  Encastrement Medio I Timer 12021

Caractéristiques

• Type de produit: Ventilateur
• Type d’aérateur: Temporisé
• Débit: 122
• Fixation: Mural
• Tension: 240
• Caractéristiques: Clapet anti-retour, Voyant de fonctionnement

VORTICE – AÉRATEUR DE CONDUIT CENTRIFUGE, SÉRIE VORT QUADRO TIMER, À ENCASTREMENT • MATERIAL USED FOR PARTS NOT RECESSED INTO WALL: WHITE ABS PLASTIC.• MATERIAL USED FOR PARTS RECESSED INTO WALL: TALC-FILLED BLACK PLASTIC (PP) GIVING ADDED STRENGTH.• NOMINAL DIAMETER 100 MM.• CAPACITOR START 2-SPEED INDUCTION MOTOR COUPLED TO A FORWARD BLADED CENTRIFUGAL IMPELLER, WITH THERMAL OVERLOAD CUTOUT AND SELF-LUBRICATING BUSHINGS.• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).VORT QUADRO MEDIO I TIMER  12021ABSORBED POWER 1ST SPEED (W): 25FREQUENCY (HZ): 50INSULATION CLASS: II°IP: X4MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,18MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,14MAX. ABSORBED POWER AT MAX SPEED (W): 29NOMINAL DIAMETER (MM): 100Ø DISCHARGE HOLE (MM): 97VOLTAGE (V): 220-240WEIGHT (KG): 2,8DELIVERY 1ST SPEED (L/S): 19DELIVERY 1ST SPEED (M³/H): 70MAX DELIVERY AT MAX SPEED (L/S): 34MAX DELIVERY AT MAX SPEED (M³/H): 122PRESSURE – 1ST SPEED (MMH20): 21PRESSURE – 1ST SPEED (PA): 206 PRESSURE MAX – MAX SPEED (MMH20):34PRESSURE MAX – MAX SPEED (PA): 331RPM MAX: 1890RPM MIN: 1150SOUND PRESSURE LEVEL LP [DB (A)] 3M – MAX SPEED: 41,2SOUND PRESSURE LEVEL LP [DB (A)] 3M – MIN SPEED: 35,9SOUND PRESSURE LEVEL SIDE EXTRACTION [DB(A)] 3M – MAX SPEED: 39,6SOUND PRESSURE LEVEL SIDE EXTRACTION [DB(A)] 3M – MIN SPEED: 33,4SIZE A (MM): 287SIZE C (MM): 37SIZE D (MM):97SIZE E (MM): 103SIZE F (MM): 72SIZE G (MM): 69SIZE H (MM): 130SIZE L (MM): 26
