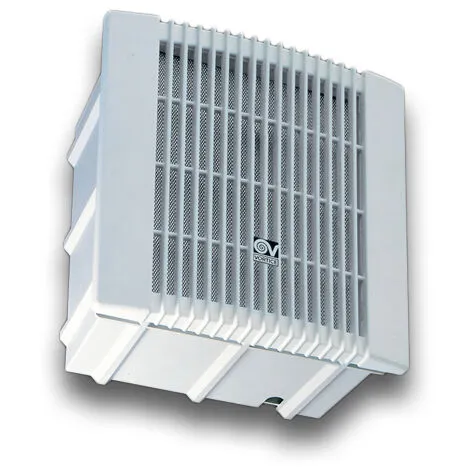

Vortice Aérateur Vort Press à  Encastrement 140 Ll 11971

VORTICE – AÉRATEUR DE CONDUIT CENTRIFUGE, SÉRIE VORT PRESS LONG LIFE 30000h, MONTAGE SUR MUR• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).• NOMINAL DIAMETER 100 MM• 2 SPEED MOTOR WITH THERMAL OVERLOAD PROTECTION AND SHAFT TURNING IN BALL BEARINGS.• MINIMUM AIR FLOW, REAR OUTLET: 55 M3/HMAXIMUM AIR FLOW, REAR OUTLET: 118 M3/H• MINIMUM AIR FLOW, SIDE OUTLET: 67 M3/HMAXIMUM AIR FLOW, SIDE OUTLET: 140 M3/H• DOUBLE MOTOR-FAN ENCLOSURE, ANTIVIBRATION MOUNTS AND NON-RETURN DAMPER COMBINING TO ENSURE EXTREMELY QUIET OPERATION.• SUPPLIED WITH FRONT GRILLE MOUNTING SPRINGS, SUITABLE FOR ANY KIND OF FALSE CEILING (65 MM MAX).• REMOVABLE AND WASHABLE METAL MESH FILTER.• OUTLET PORT EQUIPPED WITH NON-RETURN DAMPER.• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS• VORTICE SPEED CONTROLLER.VORT PRESS 140 LL 11971 ABSORBED POWER 1ST SPEED (W): 16FREQUENCY (HZ): 50INSULATION CLASS: II°IP: X4MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 40MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,1MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,05MAX. ABSORBED POWER AT MAX SPEED (W): 27NOMINAL DIAMETER (MM): 100Ø DISCHARGE HOLE (MM): 97VOLTAGE (V): 220-240WEIGHT (KG): 2,9DELIVERY 1ST SPEED (L/S): 15,3DELIVERY 1ST SPEED (M³/H): 55MAX DELIVERY AT MAX SPEED (L/S): 32,8MAX DELIVERY AT MAX SPEED (M³/H): 118MAX DELIVERY OF SIDE OUTLET AT MAX SPEED (L/S): 38,9MAX DELIVERY OF SIDE OUTLET AT MAX SPEED (M³/H): 140MAX DELIVERY OF SIDE OUTLET AT MIN SPEED (L/S): 18,6MAX DELIVERY OF SIDE OUTLET AT MIN SPEED (M³/H): 67MAX PRESSURE AT SIDE OUTLET – MAX SPEED (MMH2O): 22MAX PRESSURE AT SIDE OUTLET – MIN SPEED (MMH2O): 8MAX PRESSURE AT SIDE OUTLET – MIN SPEED (PA): 78MAX PRESSURE AT SIDE OUTLET (PA): 216PRESSURE – 1ST SPEED (MMH20): 8PRESSURE – 1ST SPEED (PA): 78PRESSURE MAX – MAX SPEED (MMH20): 22PRESSURE MAX – MAX SPEED (PA): 216RPM MAX: 1130RPM MIN: 594RPM SIDE AIR OUTLET – MAX SPEED: 829RPM SIDE AIR OUTLET – MIN SPEED: 450SOUND PRESSURE LEVEL LP [DB (A)] 3M – MAX SPEED: 38SOUND PRESSURE LEVEL LP [DB (A)] 3M – MIN SPEED: 30SIZE A (MM): 28SIZE B (MM): 65SIZE C (MM): 284SIZE D (MM): 300SIZE E (MM): 133SIZE F (MM): 28,5SIZE G (MM): Ø 97SIZE H (MM): 62SIZE I (MM): 71,5
