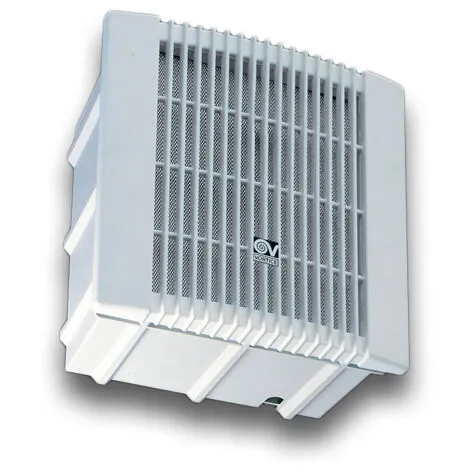

Vortice Aérateur Vort Press à  Encastrement 110 Ll 11995

Caractéristiques

• Type de produit: Aérateur

VORTICE – AÉRATEUR DE CONDUIT CENTRIFUGE, SÉRIE VORT PRESS LONG LIFE 30000h, À ENCASTREMENT • MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).• NOMINAL DIAMETER 100 MM• 2 SPEED MOTOR WITH THERMAL OVERLOAD PROTECTION AND SHAFT TURNING IN BALL BEARINGS.• MINIMUM AIR FLOW, REAR OUTLET: 60 M3/HMAXIMUM AIR FLOW, REAR OUTLET: 120 M3/H• MINIMUM AIR FLOW, SIDE OUTLET: 50 M3/HMAXIMUM AIR FLOW, SIDE OUTLET: 100 M3/H• DOUBLE MOTOR-FAN ENCLOSURE, ANTIVIBRATION MOUNTS AND NON-RETURN DAMPER COMBINING TO ENSURE EXTREMELY QUIET OPERATION.• SUPPLIED WITH FRONT GRILLE MOUNTING SPRINGS, SUITABLE FOR ANY KIND OF FALSE CEILING (65 MM MAX).• REMOVABLE AND WASHABLE METAL MESH FILTER.• OUTLET PORT EQUIPPED WITH NON-RETURN DAMPER.• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS• VORTICE SPEED CONTROLLER.VORT PRESS 110 LL 11995ABSORBED POWER 1ST SPEED (W): 12FREQUENCY (HZ): 50INSULATION CLASS: II°IP: X4MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 40MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,18MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,07MAX. ABSORBED POWER AT MAX SPEED (W): 24NOMINAL DIAMETER (MM): 100Ø DISCHARGE HOLE (MM): 96,5VOLTAGE (V): 220-240WEIGHT (KG): 2,1DELIVERY 1ST SPEED (L/S): 16,7DELIVERY 1ST SPEED (M³/H): 60MAX DELIVERY AT MAX SPEED (L/S): 33,3MAX DELIVERY AT MAX SPEED (M³/H): 120MAX DELIVERY OF SIDE OUTLET AT MAX SPEED (L/S): 27,8MAX DELIVERY OF SIDE OUTLET AT MAX SPEED (M³/H): 100MAX DELIVERY OF SIDE OUTLET AT MIN SPEED (L/S): 13,9MAX DELIVERY OF SIDE OUTLET AT MIN SPEED (M³/H): 50MAX PRESSURE AT SIDE OUTLET – MAX SPEED (MMH2O): 13,5MAX PRESSURE AT SIDE OUTLET – MIN SPEED (MMH2O): 8,3MAX PRESSURE AT SIDE OUTLET – MIN SPEED (PA): 81MAX PRESSURE AT SIDE OUTLET (PA): 132PRESSURE – 1ST SPEED (MMH20): 8,9PRESSURE – 1ST SPEED (PA): 87PRESSURE MAX – MAX SPEED (MMH20): 14,5PRESSURE MAX – MAX SPEED (PA): 142RPM MAX: 1720RPM MIN: 970RPM SIDE AIR OUTLET – MAX SPEED: 1980RPM SIDE AIR OUTLET – MIN SPEED: 1090SOUND PRESSURE LEVEL LP [DB (A)] 3M – MAX SPEED: 41SOUND PRESSURE LEVEL LP [DB (A)] 3M – MIN SPEED: 30SIZE A (MM): 252SIZE B (MM): 23SIZE C (MM): 65SIZE D (MM): 214,5SIZE E (MM): 228SIZE F (MM): 135,3SIZE G (MM): 31,5/76,7SIZE H (MM): Ø 96,5SIZE I (MM): 180SIZE J (MM): 92SIZE K (MM): 76SIZE L (MM): 92SIZE M (MM): 76
