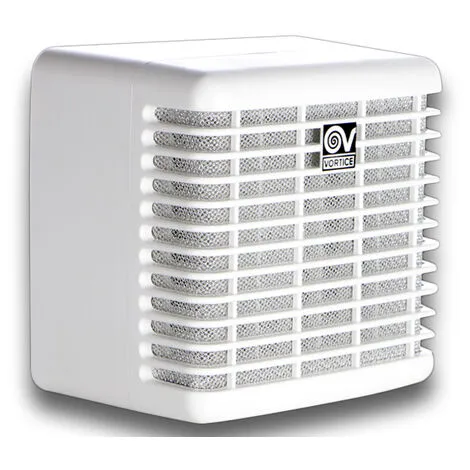

Vortice Aérateur Vort Press 220 Ll 11977

Caractéristiques

• Type de produit: Aérateur
• Diamètre du conduit: 100

VORTICE – AÉRATEUR DE CONDUIT CENTRIFUGE, SÉRIE VORT PRESS LONG LIFE 30000h- CONSTRUCTION IN PLASTIC RESIN AGING-RESISTANT DUE TO SUN EXPOSURE (« UV RESISTANT »).- NOMINAL DIAMETER 100 MM.- HIGH EFFICIENCY ELECTRONIC COMMUTATION MOTOR (EC), COMBINED WITH A CENTRIFUGAL IMPELLER, WHICH GUARANTEES A WIDE RANGE OF ADJUSTMENTS AND A SIGNIFICANT REDUCTION IN CONSUMPTION, WITH THE SAME PERFORMANCE.- DOUBLE MOTOR-FAN HOUSING, ANTI-VIBRATION MOUNTS AND NON-RETURN CLOSURE TO ENSURE EXTREMELY SILENT OPERATION.- REMOVABLE AND WASHABLE METAL FILTER (EVEN IN DISHWASHER).- CLOSURE WITH SILICONE MEMBRANE TO PREVENT AIR RE-ENTRY WHEN THE APPLIANCE IS SWITCHED OFF.- VERTICAL DELIVERY MOUTHPIECE WITH MOUTHPIECE SUPPLIED, ADJUSTABLE IN HORIZONTAL POSITION WITH SPECIAL DIVERTER.- COMPLETE DELIVERY MOUTH EQUIPPED WITH ANTI-RETURN VALVE.- SATURATED FILTER SIGNALLING DEVICE.- SPEED CONTROLLABLE BY VORTEX REGULATOR. série VORT PRESS 220 LL  11977MAX ABSORBED CURRENT AT MAX VEL. (A): 0,55MAX. CURRENT CONSUMPTION AT MIN VEL. (A): 0,15NOMINAL CONDUIT DIAMETER (MM): 100FREQUENCY (HZ): 50PROTECTION DEGREE: IPX4INSULATION: 2ND CLASSEXHAUST Ø (MM): 97WEIGHT (KG): 2.3MAX ABSORBED POWER AT MAX VEL. (W): 60MAX. ABSORBED POWER AT MIN VEL. (W): 11TEMP. ENVIRONMENT MAX. CONTINUOUS OPERATION (°C): 40VOLTAGE (V): 220-240MAX CAPACITY AT MAX VEL. (L/S): 72MAX CAPACITY AT MAX VEL. (M³/H): 260MAX FLOW RATE AT MIN VEL. (L/S): 35MAX FLOW RATE AT MIN VEL. (M³/H): 125MAX PRESSURE TO MAX VEL. (MMH2O): 35MAX PRESSURE TO MAX VEL. (PA): 343MAX PRESSURE AT MIN VEL. (MMH2O): 11MAX PRESSURE AT MIN VEL. (PA): 108SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MAX. VEL.: 55SOUND PRESSURE LEVEL LP IN FREE FIELD [DB(A)] 3 M MIN VEL.: 43RPM MAX: 2380RPM MIN: 1200 SIZE A (MM):  275SIZE B (MM):  140SIZE C (MM):  28SIZE D (MM):  Ø 97SIZE E (MM):  73 complementary accessories:-  electronic speed controller vortice 12966-  built-in speed controller vortice 12971
