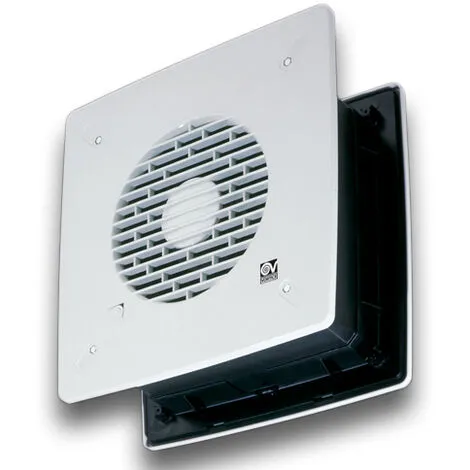

Vortice Aérateur Vario Ll 300/12″ Réversible à encastrement Automatic 12416

Caractéristiques

• Type de produit: Ventilateur
• Type de commande: Interrupteur
• Fixation: Mural
• Tension: 240

VORTICE – AÉRATEUR HÉLICOÏDAL POUR INSTALLATION MURALE/SUR VITRE, SÉRIE VARIO LONG LIFE 30000h, À ENCASTREMENT• MODEL DESIGNED FOR FLUSH WALL-MOUNTED INSTALLATION.• REVERSIBILITY FUNCTION (INTAKE OR EXTRACTION).• AUTOMATIC SHUTTER: PREVENTS THE ENTRY OF COLD AIR AND BAD SMELLS WHEN THE APPLIANCE IS SWITCHED OFF.• MATERIAL: UV RESISTANT ABS PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT)• NOMINAL DIAMETER 300 MM.• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.VARIO 300/12″ REVERSIBLE AUTOMATIC LL  12416ABSORBED CURRENT MAX (A): 0,41ABSORBED POWER MAX (W): 75FREQUENCY (HZ): 50-60INLET: AUTOMATICOINSULATION CLASS: II°IP: X4MAX ABSORBED POWER AT 60HZ (W): 90MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION 60HZ (°C): 40Ø DISCHARGE HOLE (MM): 435 ÷ 440VOLTAGE (V): 220-240WEIGHT (KG): 7,20DELIVERY MAX – EXTRACT (L/S): 486,1DELIVERY MAX – EXTRACT (M3/H): 1750DELIVERY MAX – INTAKE (L/S): 277,7DELIVERY MAX – INTAKE (M3/H): 1000DELIVERY MAX (M³/H): 1750RPM: 1230RPM – EXHAUST: 1230RPM – SUPPLY: 1310SOUND PRESSURE LEVEL LP [DB (A)] 3M: 53,5Ø WALL HOLE: 435/440SIZE A (MM): 495SIZE B (MM): 495SIZE C (MM): 11,5SIZE D (MM): 210
