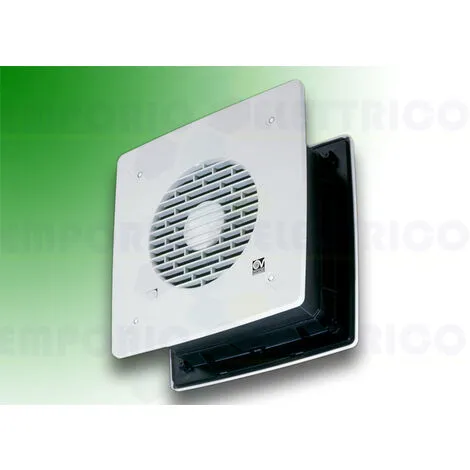

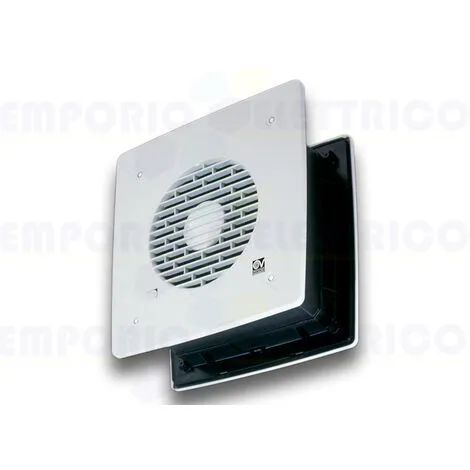

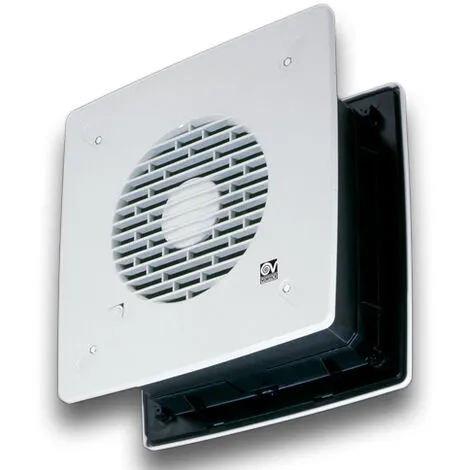

Vortice Aérateur Vario Ll 230/9 Réversible à  Encastrement 12456

Caractéristiques

• Type de produit: Ventilateur
• Type de commande: Interrupteur
• Débit: 350
• Fixation: Mural
• Tension: 240
• Puissance: 35

VORTICE – AÉRATEUR HÉLICOÏDAL, INSTALLATION MURALE, SÉRIE VARIO LONG LIFE 30000h, À ENCASTREMENT• MODEL DESIGNED FOR INSTALLATION RECESSED INTO WALL.• REVERSIBILITY FUNCTION (INTAKE OR EXTRACTION).• AUTOMATIC SHUTTER: PREVENTS THE ENTRY OF COLD AIR AND BAD SMELLS WHEN THE APPLIANCE IS SWITCHED OFF.• MATERIAL: UV RESISTANT ABS PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT)• NOMINAL DIAMETER 230 MM.• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.VARIO 230/9″ REVERSIBLE AUTOMATIC LL  12456ABSORBED CURRENT MAX (A): 0,19ABSORBED POWER MAX (W): 35FREQUENCY (HZ): 50-60INLET: AUTOMATICOINSULATION CLASS: II°IP: X4MAX ABSORBED POWER AT 60HZ (W): 40MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION 60HZ (°C): 50Ø DISCHARGE HOLE (MM): 335 ÷ 340VOLTAGE (V): 220-240WEIGHT (KG): 3,88DELIVERY MAX – EXTRACT (L/S): 188,9DELIVERY MAX – EXTRACT (M3/H):680DELIVERY MAX – INTAKE (L/S): 97,2DELIVERY MAX – INTAKE (M3/H): 350DELIVERY MAX (M³/H): 680RPM: 1160RPM – EXHAUST: 1160RPM – SUPPLY: 1260SOUND PRESSURE LEVEL LP [DB (A)] 3M: 45,3Ø WALL HOLE: 335/340SIZE A (MM): 400SIZE B (MM): 400SIZE C (MM): 11SIZE D (MM): 180
