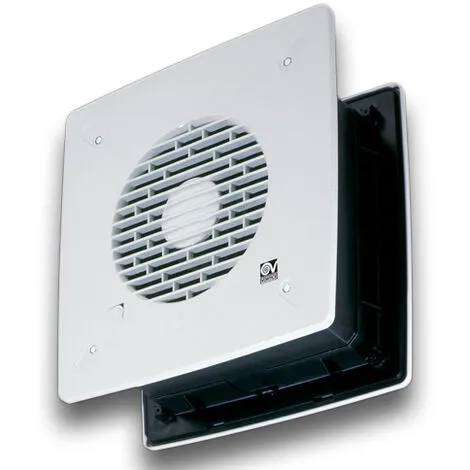

Vortice Aérateur Vario Ll 150/6 Réversible à encastrement Automatic 12616

Caractéristiques

• Type de produit: Extraction, Ventilateur, Accessoires
• Usage: Particulier
• Fixation: Murale

VORTICE – AÉRATEUR HÉLICOÏDAL, INSTALLATION MURALE, SÉRIE VARIO LONG LIFE 30000h, À ENCASTREMENT• MODEL DESIGNED FOR INSTALLATION RECESSED INTO WALL.• REVERSIBILITY FUNCTION (INTAKE OR EXTRACTION).• AUTOMATIC SHUTTER: PREVENTS THE ENTRY OF COLD AIR AND BAD SMELLS WHEN THE APPLIANCE IS SWITCHED OFF.• MATERIAL: UV RESISTANT ABS PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT)• NOMINAL DIAMETER 150 MM.• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN BALL BEARINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.VARIO 150/6″ REVERSIBLE AUTOMATIC LL  12616ABSORBED CURRENT MAX (A): 0,17ABSORBED POWER MAX (W): 35FREQUENCY (HZ): 50-60INLET: AUTOMATICOINSULATION CLASS: II°IP: X4MAX ABSORBED POWER AT 60HZ (W): 35MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION 60HZ (°C): 50Ø DISCHARGE HOLE (MM): 260 ÷ 265VOLTAGE (V): 220-240WEIGHT (KG): 2,52DELIVERY MAX – EXTRACT (L/S): 97,2DELIVERY MAX – EXTRACT (M3/H): 350DELIVERY MAX – INTAKE (L/S): 55,6DELIVERY MAX – INTAKE (M3/H): 200DELIVERY MAX (M³/H): 350RPM: 2080RPM – EXHAUST: 2080RPM – SUPPLY: 2460SOUND PRESSURE LEVEL LP [DB (A)] 3M: 49,1Ø WALL HOLE: 260/265SIZE A (MM): 300SIZE B (MM): 300SIZE C (MM): 10,5SIZE D (MM): 135
