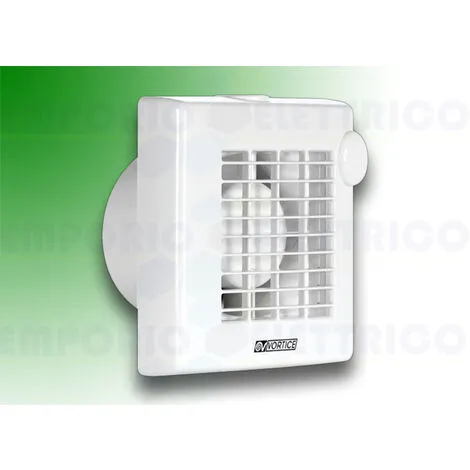

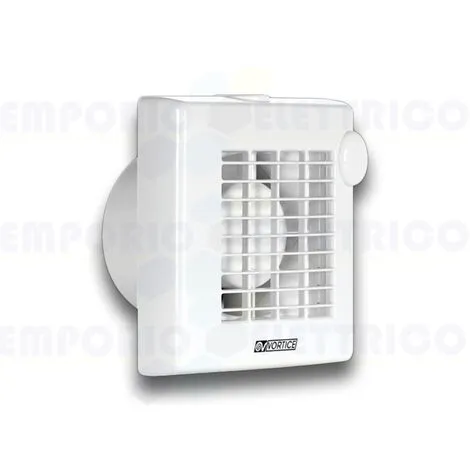

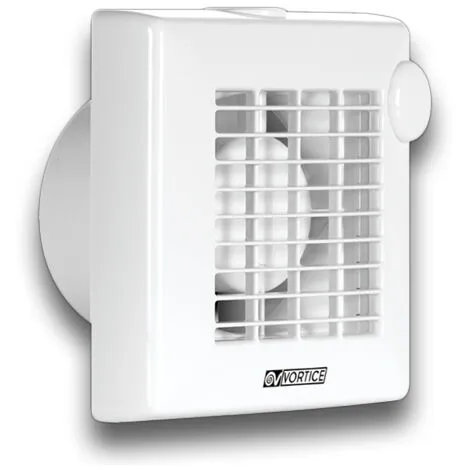

Vortice Aérateur Punto M 120/5 Timer 11311

Caractéristiques

• Type de produit: Aérateur
• Débit: 175
• Fixation: Mural

VORTICE – AÉRATEUR HÉLICOÏDAL MURAL, SÉRIE PUNTO• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).• NOMINAL DIAMETER 120 MM.• MOTOR PROTECTED AGAINST THERMAL OVERLOAD, WITH SHAFT TURNING IN SELF-LUBRICATING BUSHINGS, COUPLED TO SCREW TYPE THERMOPLASTIC IMPELLER WITH WING PROFILE BLADES.• MAXIMUM AIR FLOW: 175 M3/H.• EQUIPPED WITH ELECTRONIC TIMER DESIGNED TO SHUT OFF THE MOTOR AUTOMATICALLY AFTER A SET INTERVAL, SELECTABLE DURING INSTALLATION IN THE RANGE 3’-20’ (DEFAULT SETTING 3’).• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.PUNTO Serie M 120/5″ TIMER  11311ABSORBED CURRENT MAX (A): 0,12ABSORBED POWER MAX (W): 20FREQUENCY (HZ): 50INSULATION CLASS: II°IP: X4MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50NOMINAL DIAMETER (MM): 120Ø DISCHARGE HOLE (MM): 119VOLTAGE (V): 220-240WEIGHT (KG): 0,8DELIVERY MAX (L/S): 48,6DELIVERY MAX (M³/H): 175PRESSURE MAX (MMH2O): 4,5PRESSURE MAX (PA): 44RPM: 2100SOUND PRESSURE LEVEL LP [DB (A)] 3M: 39,5SIZE A (MM): 179SIZE B (MM): 181SIZE C (MM): 110SIZE D (MM): 47SIZE E (MM): Ø 119
