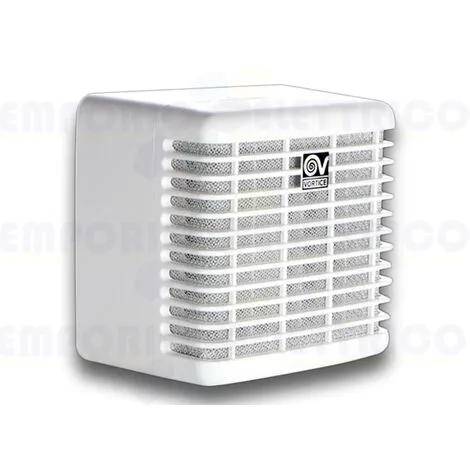

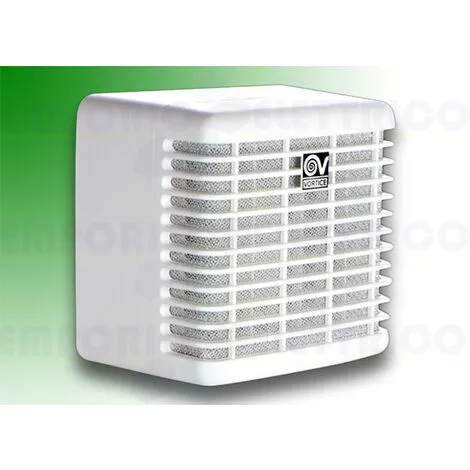

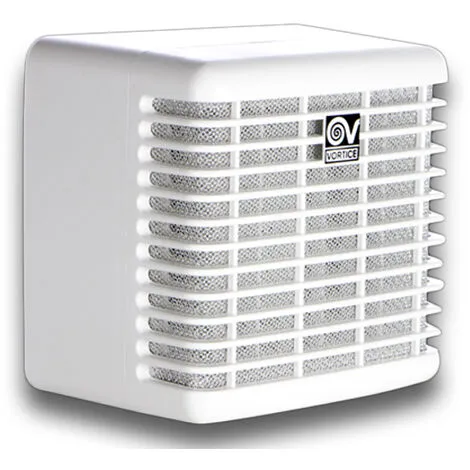

Vortice Aérateur De Conduit Vort Press 110 Ll 11967

VORTICE – AÉRATEUR DE CONDUIT CENTRIFUGE, SÉRIE VORT PRESS LIFE 30000h• MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).• NOMINAL DIAMETER 100 MM• 2 SPEED MOTOR WITH SHAFT TURNING IN BALL BEARINGS, COUPLED TO A FORWARD-BLADED CENTRIFUGAL IMPELLER.• MINIMUM AIR FLOW: 55 M3/HMAXIMUM AIR FLOW: 110 M3/H• DOUBLE MOTOR-FAN ENCLOSURE, ANTIVIBRATION MOUNTS AND NON-RETURN DAMPER COMBINING TO ENSURE EXTREMELY QUIET OPERATION.• REMOVABLE AND WASHABLE METAL MESH FILTER (DISHWASHER SAFE).• CLOSURE WITH SILICONE DIAPHRAGM DESIGNED TO PREVENT BACKDRAUGHTS WHEN THE APPLIANCE IS OFF.• VERTICAL OUTLET PORT SUPPLIED AS STANDARD WITH SPIGOT POSITIONABLE HORIZONTALLY BY MEANS OF DIVERTER.• OUTLET PORT EQUIPPED WITH NON-RETURN DAMPER.• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS• VORTICE SPEED CONTROLLER.VORT PRESS Serie 110 LL  11967ABSORBED POWER 1ST SPEED (W): 12FREQUENCY (HZ): 50INSULATION CLASS: II°IP: X4MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 40MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,22MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,07MAX. ABSORBED POWER AT MAX SPEED (W): 24NOMINAL DIAMETER (MM): 100Ø DISCHARGE HOLE (MM): 97VOLTAGE (V): 220-240WEIGHT (KG): 1,95DELIVERY 1ST SPEED (L/S): 15,3DELIVERY 1ST SPEED (M³/H): 55MAX DELIVERY AT MAX SPEED (L/S): 30,6MAX DELIVERY AT MAX SPEED (M³/H): 110PRESSURE – 1ST SPEED (MMH20): 10PRESSURE – 1ST SPEED (PA): 98PRESSURE MAX – MAX SPEED (MMH20): 16PRESSURE MAX – MAX SPEED (PA): 157RPM MAX: 1760RPM MIN: 925SOUND PRESSURE LEVEL LP [DB (A)] 3M – MAX SPEED: 41SOUND PRESSURE LEVEL LP [DB (A)] 3M – MIN SPEED: 30SIZE A (MM): 202SIZE B (MM): 147SIZE C (MM): 30SIZE D (MM): Ø 97SIZE E (MM): 73
