Vortice Aérateur Ca Md Et Ca 315 Md Et 16167 (ex 16157)

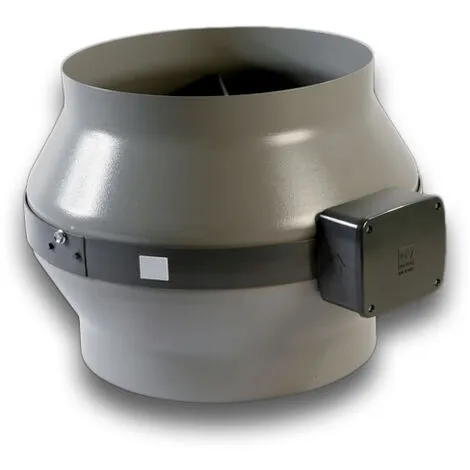

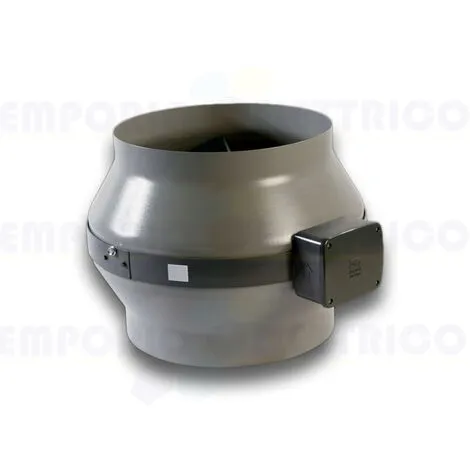

VORTICE – AÉRATEUR CENTRIFUGE AXIAL EN ACIER 16167• PICKLED AND PHOSPHATED STEEL HOUSING WITH POLYESTER POWDER-COATED FINISH, RESISTANT TO THE AGGRESSIVE ACTION OF ATMOSPHERIC AGENTS.• NOMINAL DIAMETER 315 MM.• 3 SPEED FAN THROUGH TRIO-CA OPTIONAL CONTROL (COD. 12869), CONSISTING OF:• EXTERNAL ROTOR AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS,• BACKWARD CURVED CENTRIFUGAL IMPELLER.• OPERATION CONTROLLABLE BY REMOTE SENSORS MONITORING: TEMPERATURE, RELATIVE HUMIDITY, SMOKE AND PRESENCE.• ZINC-COATED STEEL BRACKETS FOR WALL MOUNTING.CA 315 MD E    16167 (EX 16157)ABSORBED POWER 1ST SPEED (W): 58FREQUENCY (HZ): 50-60INSULATION CLASS: II°IP: 44MAX ABSORBED POWER AT 60HZ (W): 175MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 50MAX. ABSORBED CURRENT AT MAX. SPEED (A): 0,53MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0,51MAX. ABSORBED POWER AT MAX SPEED (W): 120NOMINAL DIAMETER (MM): 315VOLTAGE (V): 220-240WEIGHT (KG): 11DELIVERY 1ST SPEED (L/S): 172DELIVERY 1ST SPEED (M³/H): 620MAX DELIVERY AT MAX SPEED (L/S): 300MAX DELIVERY AT MAX SPEED (M³/H): 1080PRESSURE – 1ST SPEED (MMH20): 43PRESSURE – 1ST SPEED (PA): 422PRESSURE MAX – MAX SPEED (MMH20): 58PRESSURE MAX – MAX SPEED (PA): 569RPM MAX: 2660RPM MIN: 1560SOUND PRESSURE LEVEL LP [DB (A)] 3M – MAX SPEED: 52,3SOUND PRESSURE LEVEL LP [DB (A)] 3M – MIN SPEED: 41,8SIZE A (MM): 406SIZE B (MM): 306SIZE C (MM): 488SIZE D (MM): 312SIZE E (MM): 21SIZE F (MM): 30
