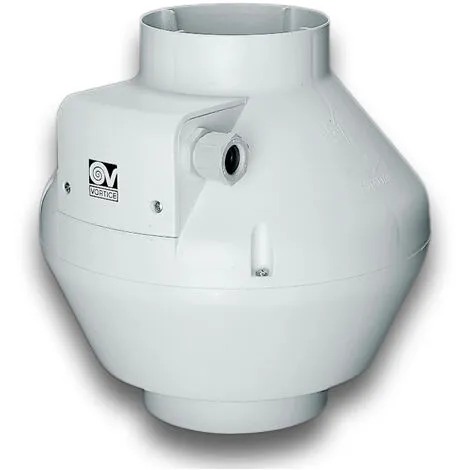

Vortice Aérateur Ca 315 Vo Et 16041 (ex 16065)

Caractéristiques

• Type: Régulateur/auto-réglable
• Options: Système acoustique

VORTICE –  AÉRATEUR CENTRIFUGE AXIAL EN RÉSINE VO AUTO-EXTINCTION 16041• MATERIAL: SELF-EXTINGUISHING PP THERMOPLASTIC RESIN, RATED V0.• NOMINAL DIAMETER 315 MM.• 3 SPEED FAN THROUGH TRIO-CA OPTIONAL CONTROL (COD. 12869), CONSISTING OF:• AC MOTOR WITH THERMAL OVERLOAD CUTOUT AND SHAFT TURNING IN BALL BEARINGS,• BACKWARD CURVED IMPELLER.• OPERATION CONTROLLABLE BY REMOTE SENSORS MONITORING: TEMPERATURE, RELATIVE HUMIDITY, SMOKE AND PRESENCE.• ZINC-COATED STEEL BRACKETS FOR WALL MOUNTING.CA 315-VO E    16041 (EX 16065)ABSORBED CURRENT MAX (A): 0,54ABSORBED POWER 1ST SPEED (W): 48ABSORBED POWER MAX (W): 120FREQUENCY (HZ): 50-60INSULATION CLASS: II°IP: 44MAX ABSORBED POWER AT 60HZ (W): 185MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 55MAX. ABSORBED CURRENT AT MIN. SPEED (A): 0.48NOMINAL DIAMETER (MM): 315VOLTAGE (V): 220-240WEIGHT (KG): 5,5DELIVERY 1ST SPEED (L/S): 146.3DELIVERY 1ST SPEED (M³/H): 527MAX DELIVERY AT MAX SPEED (L/S): 305.5MAX DELIVERY AT MAX SPEED (M³/H): 1100PRESSURE – 1ST SPEED (MMH20): 27.5PRESSURE – 1ST SPEED (PA): 270PRESSURE MAX – MAX SPEED (MMH20): 56.6PRESSURE MAX – MAX SPEED (PA): 554.7RPM MAX: 2640RPM MIN: 1280SOUND PRESSURE LEVEL LP [DB (A)] 3M – MAX SPEED: 54SIZE A (MM): 400SIZE B (MM): 340SIZE C (MM): 400SIZE D (MM): 312SIZE E (MM): 75SIZE F (MM): 40SIZE G (MM): 438
