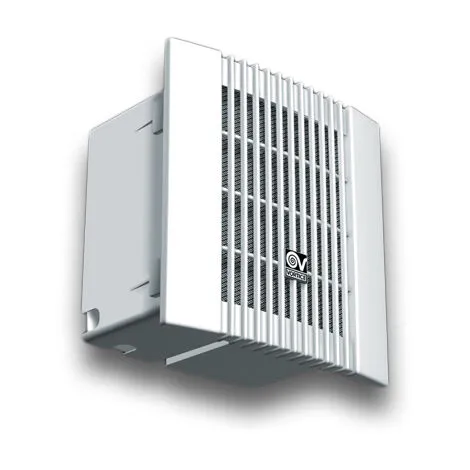

Vortice Aérateur Ariett Ll à  Encastrement 12010

Caractéristiques

• Type de produit: Aérateur

VORTICE – AÉRATEUR DE CONDUIT CENTRIFUGE, SÉRIE ARIETT LONG LIFE 30000h, À ENCASTREMENT • MATERIAL: UV RESISTANT PLASTIC (PREVENTS AGEING CAUSED BY EXPOSURE TO SUNLIGHT).• NOMINAL DIAMETER: 100 MM• MOTOR WITH THERMAL OVERLOAD PROTECTION AND SHAFT TURNING IN BALL BEARINGS.• MAXIMUM AIR FLOW, REAR: 80 M3/H• MAXIMUM AIR FLOW, SIDE: 70 M3/H• VERTICAL OUTLET PORT SUPPLIED AS STANDARD WITH SPIGOT POSITIONABLE HORIZONTALLY BY MEANS OF DIVERTER.• REAR OUTLET PORT EQUIPPED WITH NON-RETURN DAMPER.• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS• VORTICE SPEED CONTROLLER.ARIETT LL I   12010ABSORBED CURRENT MAX (A): 0,13ABSORBED POWER MAX (W): 19FREQUENCY (HZ): 50INSULATION CLASS: II°IP: X4MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C): 40MAX. ABSORBED POWER AT MAX SPEED (W): 19NOMINAL DIAMETER (MM): 100Ø DISCHARGE HOLE (MM): 96,5VOLTAGE (V): 230WEIGHT (KG): 1,9DELIVERY MAX (L/S)USCITA:POSTERIORE 22,2 LATERALE 19,4DELIVERY MAX (M³/H): 80PRESSURE MAX (MMH2O): 11PRESSURE MAX (PA): 108RPM: 2360RPM SIDE AIR OUTLET – MAX SPEED: 2460SIZE A (MM): 252SIZE B (MM): 23SIZE C (MM): 65SIZE D (MM): 214,5SIZE E (MM): 228SIZE F (MM): 135,3SIZE G (MM): 31,5/76,7SIZE H (MM): Ø 96,5SIZE I (MM): 180SIZE L (MM): 92SIZE M (MM): 76
